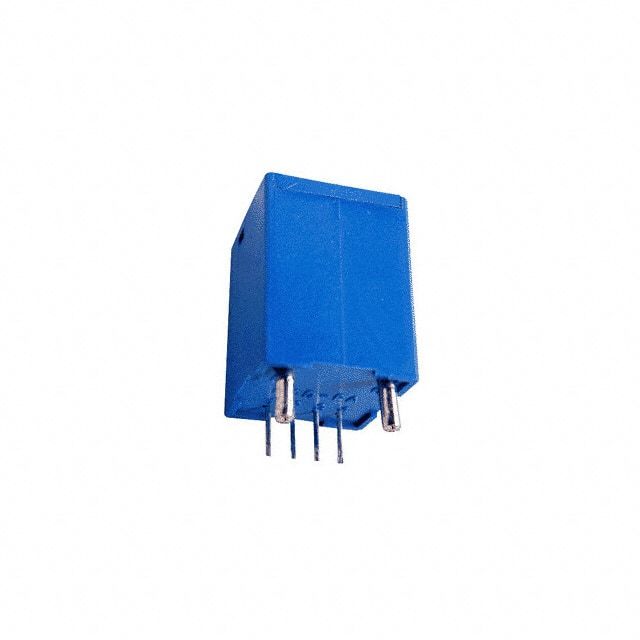

SCD05PUR
manufacturer:
CUI Devices
Description:
SENSOR CURRENT HALL 5A AC
Category:
Sensors, Transducers
Specifications
Category:
Sensors, Transducers
Current Sensors
Polarization:
Bidirectional
Operating Temperature:
-10°C ~ 75°C
Package / Case:
Module
Accuracy:
-
Sensor Type:
Hall Effect, Open Loop
Current - Supply (Max):
25mA
Number Of Channels:
1
Current - Sensing:
5A
Response Time:
3µs
Package:
Bulk
Output:
Ratiometric, Voltage
For Measuring:
AC
Product Status:
Obsolete
Mounting Type:
-
Series:
SCD
Sensitivity:
-
Linearity:
±0.5%
Supplier Device Package:
-
Mfr:
CUI Devices
Frequency:
50Hz/60Hz
Voltage - Supply:
5V
Introduction
Current Sensor 5A 1 Channel Hall Effect, Open Loop Bidirectional Module
