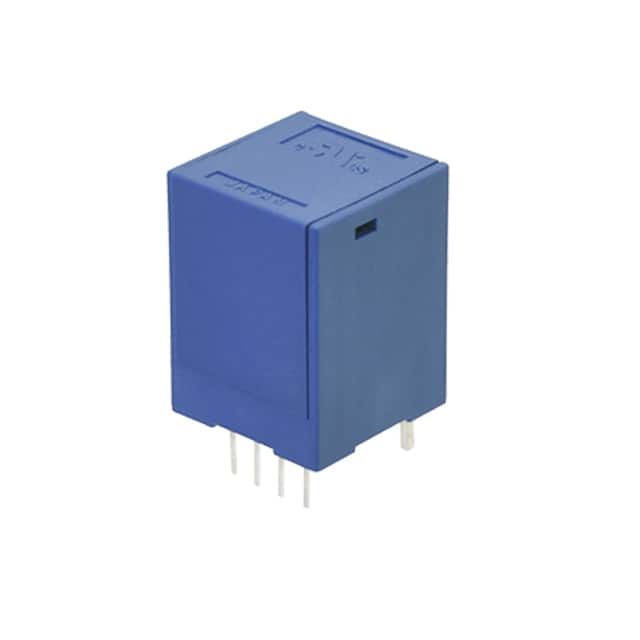

CS2005B
manufacturer:
CUI Devices
Description:
CURRENT SENSOR,OPEN LOOP,20A,+5V
Category:
Sensors, Transducers
Specifications
Category:
Sensors, Transducers
Current Sensors
Polarization:
Bidirectional
Operating Temperature:
-10°C ~ 75°C
Package / Case:
Module
Accuracy:
±2.2%
Sensor Type:
Open Loop
Current - Supply (Max):
25mA
Number Of Channels:
1
Current - Sensing:
20A
Response Time:
7µs
Package:
Tray
Output:
Ratiometric, Voltage
For Measuring:
AC
Product Status:
Active
Mounting Type:
Through Hole
Series:
CSXX05B
Sensitivity:
-
Linearity:
±0.5%
Mfr:
CUI Devices
Frequency:
DC ~ 40kHz
Voltage - Supply:
4.75V ~ 5.25V
Base Product Number:
CS2005
Introduction
Current Sensor 20A 1 Channel Open Loop Bidirectional Module
