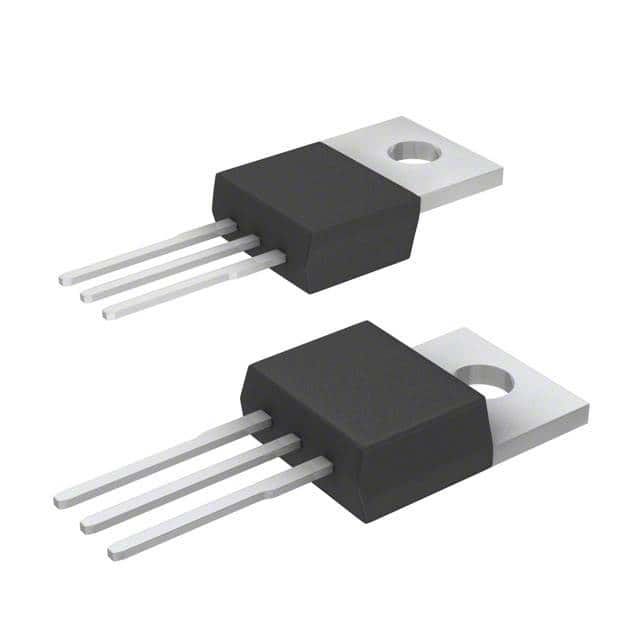

SPP21N10
manufacturer:
Infineon Technologies
Description:
MOSFET N-CH 100V 21A TO220-3
Category:
Discrete Semiconductor Products
Specifications
Category:
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
FET Feature:
-
Vgs(th) (Max) @ Id:
4V @ 44µA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
TO-220-3
Gate Charge (Qg) (Max) @ Vgs:
38.4 NC @ 10 V
Rds On (Max) @ Id, Vgs:
80mOhm @ 15A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tube
Drain To Source Voltage (Vdss):
100 V
Vgs (Max):
±20V
Product Status:
Obsolete
Input Capacitance (Ciss) (Max) @ Vds:
865 PF @ 25 V
Mounting Type:
Through Hole
Series:
SIPMOS®
Supplier Device Package:
PG-TO220-3-1
Mfr:
Infineon Technologies
Current - Continuous Drain (Id) @ 25°C:
21A (Tc)
Power Dissipation (Max):
90W (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
SPP21N
Introduction
N-Channel 100 V 21A (Tc) 90W (Tc) Through Hole PG-TO220-3-1
