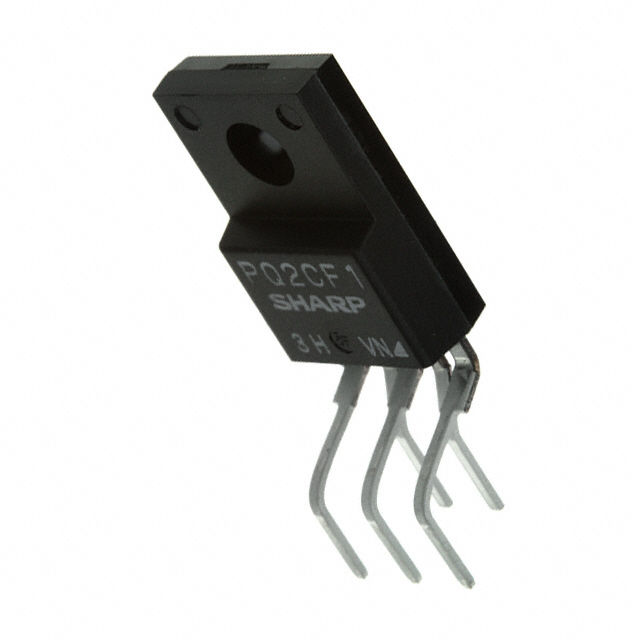

PQ2CF1J0000H
manufacturer:
Sharp Microelectronics
Description:
IC REG BST FLYBCK ADJ 2.5A TO220
Category:
Integrated Circuits (ICs)
Specifications
Category:
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Synchronous Rectifier:
No
Frequency - Switching:
50kHz
Operating Temperature:
-20°C ~ 80°C (TA)
Package / Case:
TO-220-5 Formed Leads
Voltage - Input (Min):
3.5V
Function:
Step-Up, Step-Up/Step-Down
Voltage - Output (Min/Fixed):
4.5V
Output Type:
Adjustable
Current - Output:
2.5A (Switch)
Voltage - Input (Max):
10V
Voltage - Output (Max):
35V (Switch)
Topology:
Boost, Flyback
Number Of Outputs:
1
Package:
Tube
Product Status:
Obsolete
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220
Mfr:
Sharp Microelectronics
Output Configuration:
Positive
Base Product Number:
PQ2CF1
Introduction
Boost, Flyback Switching Regulator IC Positive Adjustable 4.5V 1 Output 2.5A (Switch) TO-220-5 Formed Leads
