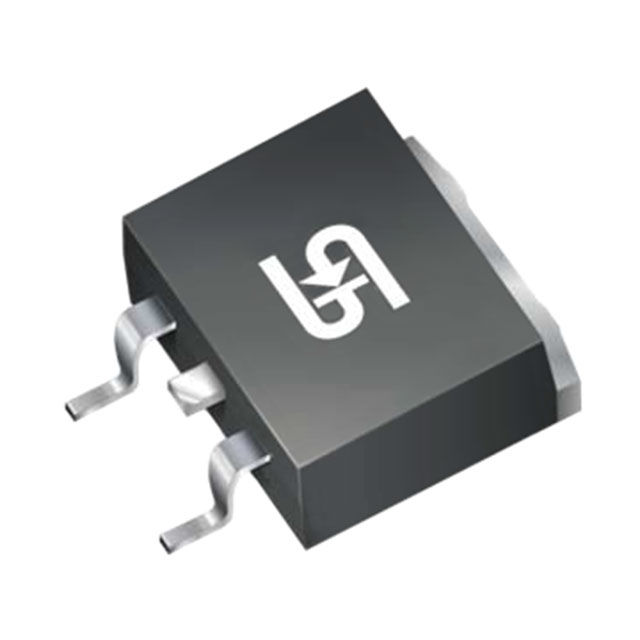

SRS1630 MNG
manufacturer:
Taiwan Semiconductor Corporation
Description:
DIODE ARRAY SCHOTTKY 30V TO263AB
Category:
Discrete Semiconductor Products
Specifications
Category:
Discrete Semiconductor Products
Diodes
Rectifiers
Diode Arrays
Product Status:
Active
Current - Average Rectified (Io) (per Diode):
16A
Operating Temperature - Junction:
-55°C ~ 125°C
Voltage - Forward (Vf) (Max) @ If:
550 MV @ 8 A
Package:
Tape & Reel (TR)
Series:
-
Diode Configuration:
1 Pair Common Cathode
Supplier Device Package:
TO-263AB (D²PAK)
Mfr:
Taiwan Semiconductor Corporation
Technology:
Schottky
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Voltage - DC Reverse (Vr) (Max):
30 V
Mounting Type:
Surface Mount
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Base Product Number:
SRS1630
Current - Reverse Leakage @ Vr:
500 µA @ 30 V
Introduction
Diode Array 1 Pair Common Cathode 30 V 16A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
