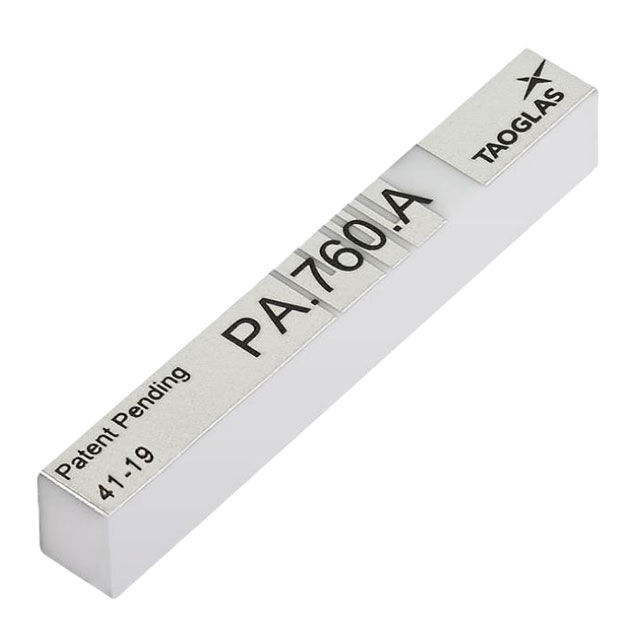

PA.760.A
manufacturer:
Taoglas Limited
Description:
WARRIORX WIDE-BAND(600MHZ-6000MH
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
8
Mounting Type:
Surface Mount
Package:
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Series:
-
Antenna Type:
Chip
Mfr:
Taoglas Limited
Frequency Group:
Wide Band
Applications:
LTE, Wi-Fi
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.4GHz, 5.5375GHz
Height (Max):
0.197" (5.00mm)
Gain:
-0.7dBi, 0.5dBi, 1dBi, -0.5dBi, 3.4dBi, 2.9dBi, 4.3dBi, 3dBi
Termination:
SMA Female
VSWR:
-
Return Loss:
-
Base Product Number:
PA.760
Model Number:
PA.760.A
Introduction
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.4GHz, 5.5375GHz LTE, Wi-Fi Chip RF Antenna 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz -0.7dBi, 0.5dBi, 1dBi, -0.5dBi, 3.4dBi, 2.9dBi, 4.3dBi, 3dBi SMA Female Surface Mount
