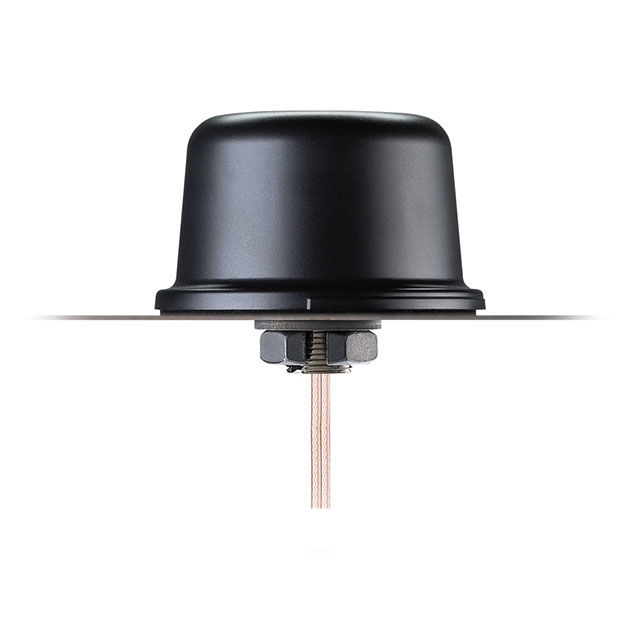

MA841.A.BI.002
manufacturer:
Taoglas Limited
Description:
2 IN 1 GPS/GLONASS/GALILEO
Category:
RF and Wireless
Specifications
Features:
Cable - 1m
Category:
RF And Wireless
RF Antennas
Frequency Range:
698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
Product Status:
Active
Ingress Protection:
IP67
Number Of Bands:
7
Mounting Type:
Panel Mount
Package:
Box
Series:
-
Antenna Type:
Dome
Mfr:
Taoglas Limited
Frequency Group:
Wide Band
Applications:
2G, 3G, 4G, LTE
RF Family/Standard:
Cellular
Frequency (Center/Band):
750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz
Height (Max):
2.260" (57.40mm)
Gain:
1.51dBi, 3.56dBi, 2.09dBi, 1.95dBi, 2.72dBi, 1.95dBi, 1.98dBi, 2.37dBi, 1.32dBi, 1.79dBi, 1.04dBi, 2.36dBi, 5.91dBi, 4.99dBi
Termination:
SMA Male
VSWR:
3.5
Return Loss:
-
Base Product Number:
MA841
Introduction
750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz 2G, 3G, 4G, LTE Dome RF Antenna 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz 1.51dBi, 3.56dBi, 2.09dBi, 1.95dBi, 2.72dBi, 1.95dBi, 1.98dBi, 2.37dBi, 1.32dBi, 1.79dBi, 1.04dBi, 2.36dBi, 5.91dBi, 4.99dBi SMA Male Panel Mount
