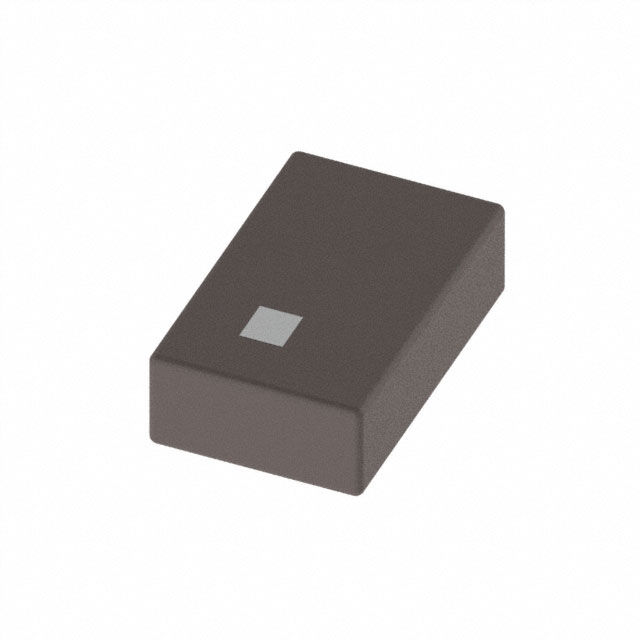

ACAG0201-2450-T
manufacturer:
Abracon LLC
Description:
RF ANT 2.4GHZ CHIP SOLDER SMD
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
-
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
1
Mounting Type:
Surface Mount
Package:
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Series:
ACAG
Antenna Type:
Chip
Mfr:
Abracon LLC
Frequency Group:
UHF (2GHz ~ 3GHz)
Applications:
Bluetooth, ISM, Wi-Fi
RF Family/Standard:
Bluetooth, General ISM, WiFi
Frequency (Center/Band):
2.4GHz
Height (Max):
0.024" (0.60mm)
Gain:
2.7dBi
Termination:
Solder
VSWR:
2
Return Loss:
-
Introduction
2.4GHz Bluetooth, ISM, Wi-Fi Chip RF Antenna 2.7dBi Solder Surface Mount
