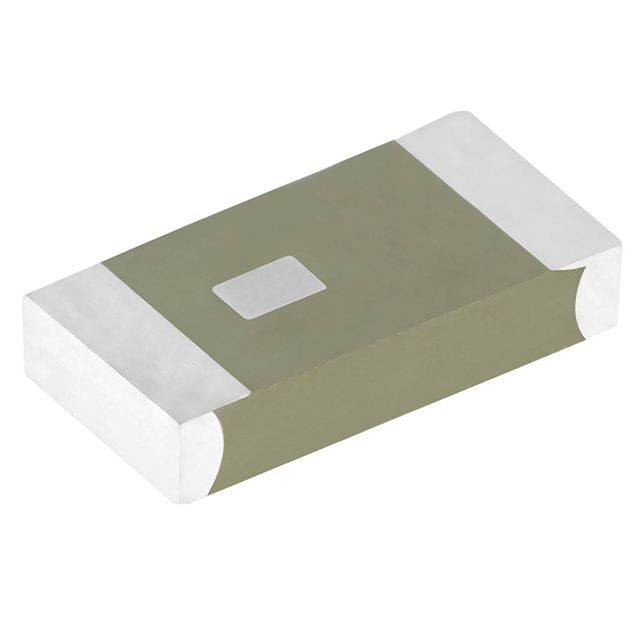

2067740001
manufacturer:
Molex
Description:
2.4/5GHZ T0.6MM ANT CORNER MOUNT
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Surface Mount
Package:
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Series:
206774
Antenna Type:
Chip
Mfr:
Molex
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Applications:
Bluetooth, Wi-Fi, Zigbee™
RF Family/Standard:
802.15.4, Bluetooth, WiFi
Frequency (Center/Band):
2.45GHz, 5.5GHz
Height (Max):
0.026" (0.65mm)
Gain:
1.8dBi, 1.9dBi, 1.7dBi
Termination:
Solder
VSWR:
-
Return Loss:
-7dB, -10dB
Base Product Number:
206774
Introduction
2.45GHz, 5.5GHz Bluetooth, Wi-Fi, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 1.8dBi, 1.9dBi, 1.7dBi Solder Surface Mount
