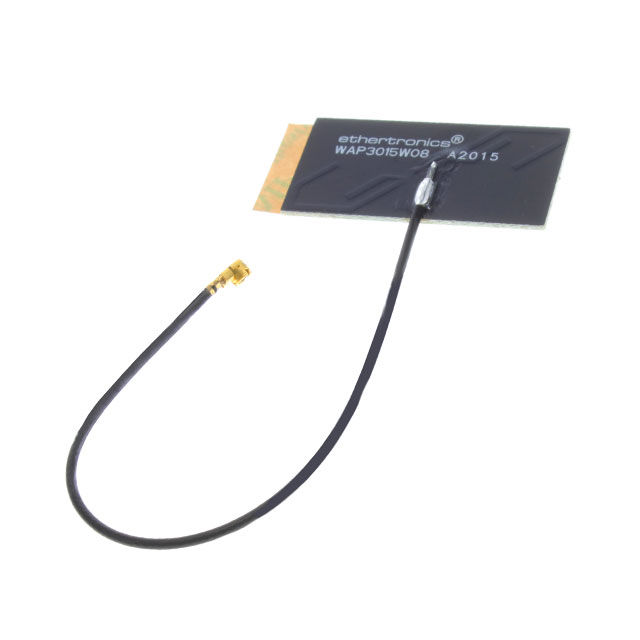

WAP3015W08-U100D3B0A
manufacturer:
Ethertronics/AVX
Description:
ANTENNA ASSY, WI-FI LEFT, 100 D0
Category:
RF and Wireless
Specifications
Features:
Cable - 100mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Adhesive
Package:
Box
Series:
-
Antenna Type:
PCB Trace
Mfr:
Ethertronics/AVX
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Applications:
Wi-Fi
RF Family/Standard:
WiFi
Frequency (Center/Band):
2.44GHz, 5.5GHz
Height (Max):
0.031" (0.80mm)
Gain:
3dBi, 6.7dBi
Termination:
U.FL
VSWR:
-
Return Loss:
-8.4dB, 8.7dB
Base Product Number:
WAP3015
Introduction
2.44GHz, 5.5GHz Wi-Fi PCB Trace RF Antenna 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz 3dBi, 6.7dBi U.FL Adhesive
