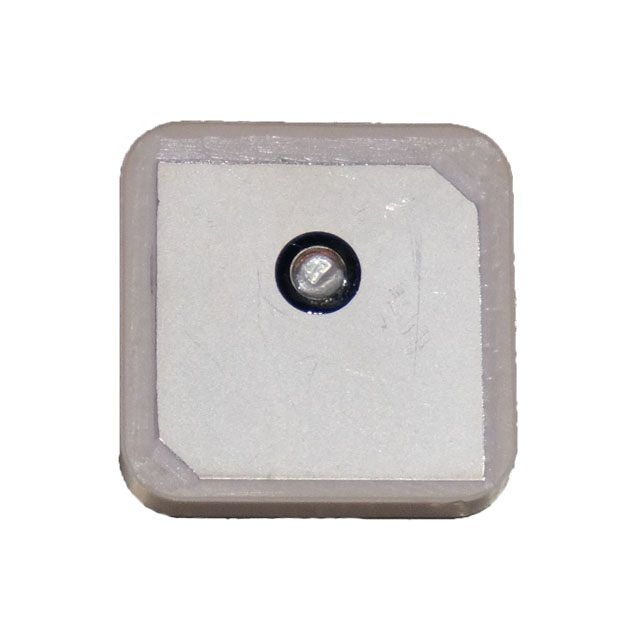

APARM2504-C2GR
manufacturer:
Abracon LLC
Description:
RF ANT GPS+IRIDIUM CER PATCH
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.575GHz, 1.61GHz ~ 1.625GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Through Hole
Package:
Box
Series:
APAR
Antenna Type:
Ceramic Patch
Mfr:
Abracon LLC
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
GPS, Iridium
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.575GHz, 1.621GHz
Height (Max):
0.157" (4.00mm)
Gain:
2dBi, 3dBi
Termination:
Solder
VSWR:
1.8
Return Loss:
-
Introduction
1.575GHz, 1.621GHz GPS, Iridium Ceramic Patch RF Antenna 1.575GHz, 1.61GHz ~ 1.625GHz 2dBi, 3dBi Solder Through Hole
