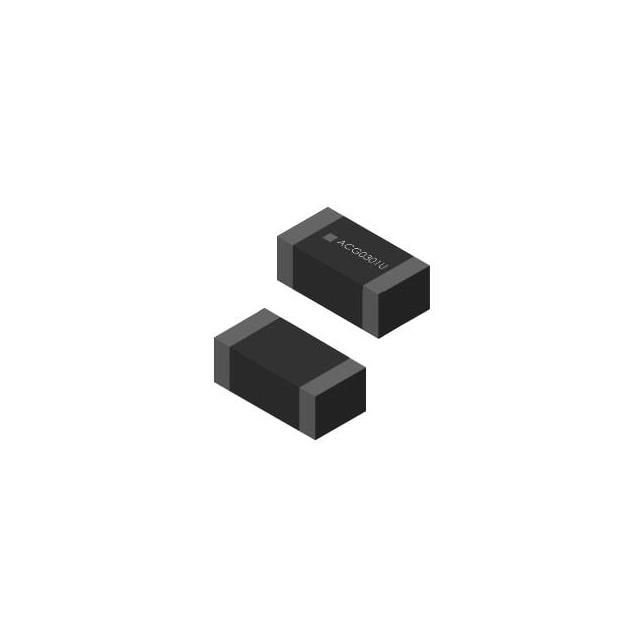

ACG0301U
manufacturer:
Abracon LLC
Description:
UWB ANT 6.22GHZ- 8.2GHZ SMD CHIP
Category:
RF and Wireless
Specifications
Features:
Filter
Category:
RF And Wireless
RF Antennas
Frequency Range:
6.2GHz ~ 8.2GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
1
Mounting Type:
Surface Mount
Package:
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Series:
-
Antenna Type:
Chip
Mfr:
Abracon LLC
Frequency Group:
Wide Band
Applications:
UWB
RF Family/Standard:
Navigation
Frequency (Center/Band):
7.2GHz
Height (Max):
0.047" (1.20mm)
Gain:
-
Termination:
-
VSWR:
2
Return Loss:
-
Introduction
7.2GHz UWB Chip RF Antenna 6.2GHz ~ 8.2GHz Surface Mount
