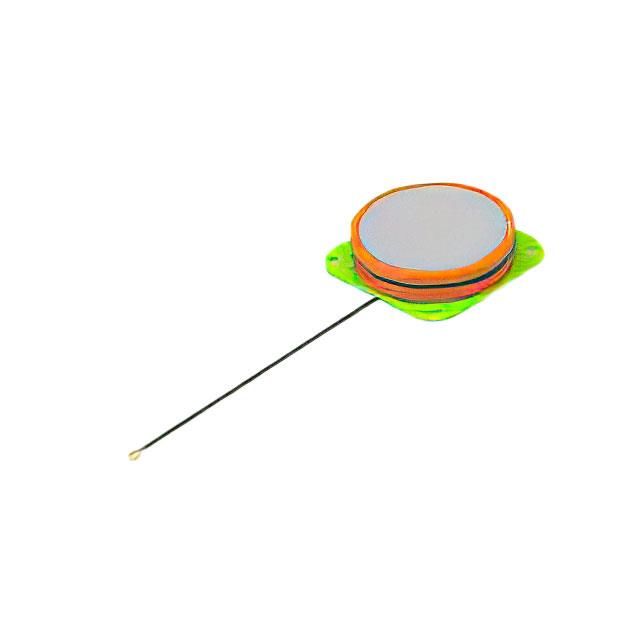

2108853-1
manufacturer:
TE Connectivity AMP Connectors
Description:
ACTIVE ANT.,MHF,100MM,L1+G1 & L2
Category:
RF and Wireless
Specifications
Features:
LNA, Filter
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Adhesive
Package:
Tray
Series:
-
Antenna Type:
Flat Patch
Mfr:
TE Connectivity AMP Connectors
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
GNSS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.225GHz, 1.5845GHz
Height (Max):
0.512" (13.00mm)
Gain:
23.2dBic ~ 32.7dBic, 30.7dBic ~ 33.5dBic
Termination:
RP-SMA Male
VSWR:
1.3
Return Loss:
-
Introduction
1.225GHz, 1.5845GHz GNSS Flat Patch RF Antenna 1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz 23.2dBic ~ 32.7dBic, 30.7dBic ~ 33.5dBic RP-SMA Male Adhesive
