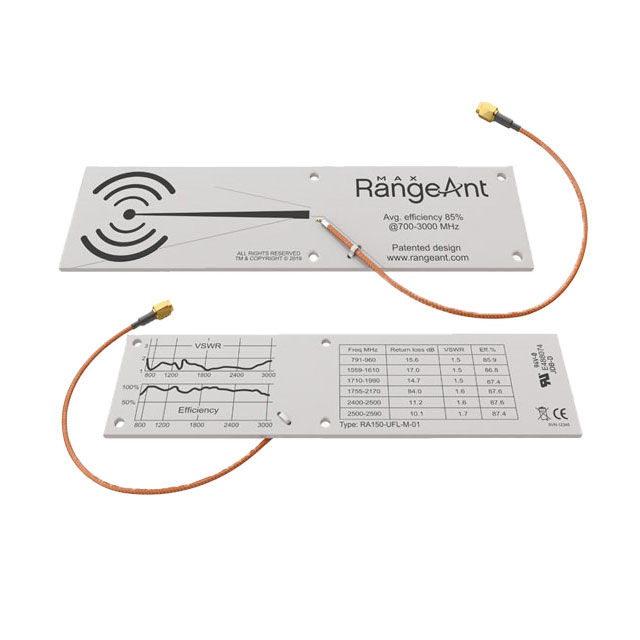

RA150-CX1
manufacturer:
RangeAnt
Description:
WIDEBAND HIGH EFFICIENCY ANTENNA
Category:
RF and Wireless
Specifications
Features:
Cable - 150mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
6
Mounting Type:
Surface Mount
Package:
Bag
Series:
MAX Wideband
Antenna Type:
PCB Trace
Mfr:
RangeAnt
Frequency Group:
Wide Band
Applications:
2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee
RF Family/Standard:
802.15.4, Bluetooth, Cellular, Navigation, WiFi
Frequency (Center/Band):
875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz
Height (Max):
0.031" (0.80mm)
Gain:
3dBi
Termination:
SMA Male
VSWR:
1.5, 1.6, 1.7
Return Loss:
10.1dB, 11.2dB, 14.7dB, 15.6dB, 17dB, 28.9dB
Introduction
875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz 2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee PCB Trace RF Antenna 791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz 3dBi SMA Male Surface Mount
