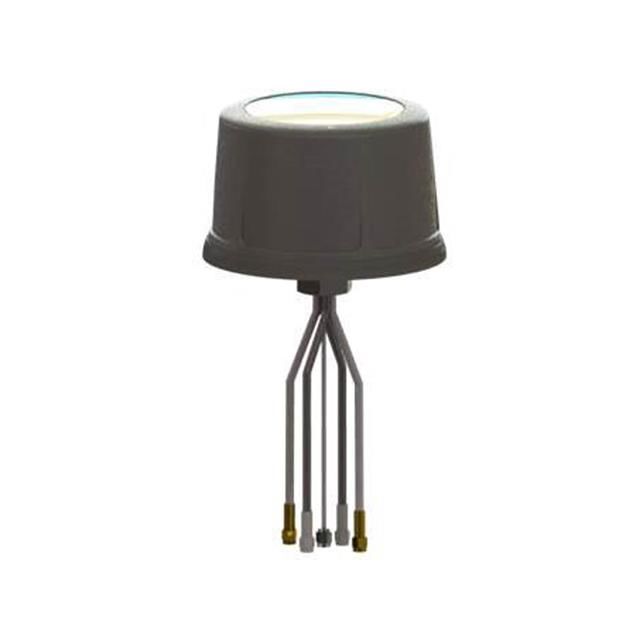

VHP69273B22G-518A
manufacturer:
TE Connectivity Laird
Description:
RF ANT 829MHZ/1.575GHZ DOME CAB
Category:
RF and Wireless
Specifications
Features:
Cable - 5.18m
Category:
RF And Wireless
RF Antennas
Frequency Range:
698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz
Frequency Group:
Wide Band
Height (Max):
3.400" (86.36mm)
Applications:
GPS, LTE, Wi-Fi
Gain:
4.1dBi, 27dB, 5.9dBi, 6.2dBi, 6.5dBi
Number Of Bands:
5
Package:
Bulk
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
829MHz, 1.575GHz, 2.2GHz, 2.5GHz, 5.4GHz
Termination:
SMA Male (3), RP-SMA Male (2)
Product Status:
Active
Ingress Protection:
IP67
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
-
Mfr:
TE Connectivity Laird
Power - Max:
50 W
VSWR:
2, 1.5, 2
Return Loss:
-
Base Product Number:
VHP69273
Model Number:
VHP69273B22G-518A
Introduction
829MHz, 1.575GHz, 2.2GHz, 2.5GHz, 5.4GHz GPS, LTE, Wi-Fi Dome RF Antenna 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz 4.1dBi, 27dB, 5.9dBi, 6.2dBi, 6.5dBi SMA Male (3), RP-SMA Male (2) Panel Mount
