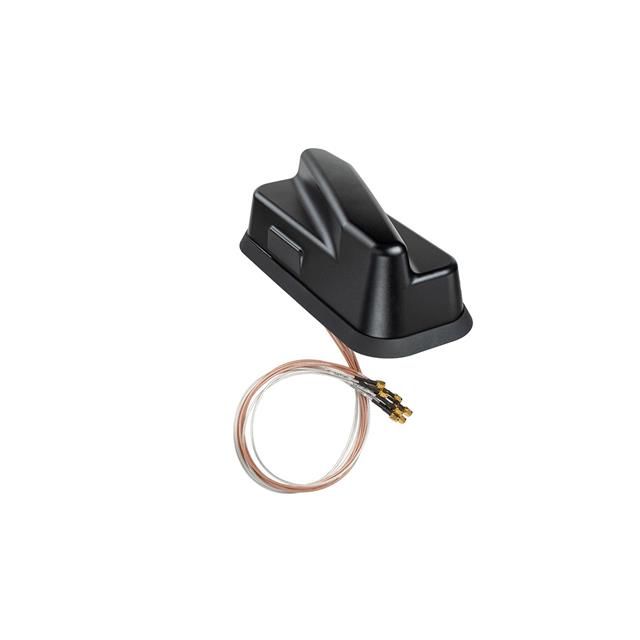

GL9X1AX-TRB-KIT
manufacturer:
PCTEL, Inc.
Description:
TROOPER II SLENDER DUAL CARRIER
Category:
RF and Wireless
Specifications
Features:
Cable - 609.6mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
600MHz ~ 698MHz, 617MHz ~ 802MHz, 617MHz ~ 802MHz, 698MHz ~ 894MHz, 733MHz ~ 960MHz, 824MHz ~ 960MHz, 880MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 3.4GHz ~
Product Status:
Active
Ingress Protection:
IP67
Number Of Bands:
17
Mounting Type:
Through Hole
Package:
Box
Series:
Trooper™ II
Antenna Type:
Module
Mfr:
PCTEL, Inc.
Frequency Group:
Wide Band
Applications:
802.11ax, GNSS, Wi-Fi
RF Family/Standard:
Cellular, WiFi
Power - Max:
25 W
Frequency (Center/Band):
657.5MHz, 750MHz, 767.5MHz, 780MHz, 788.5MHz, 859MHz, 920MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.205GHz, 2.45GHz, 2.495GHz, 3.8GHz, 4.6GHz, 5.4GHz, 5.55GHz
Height (Max):
3.543" (90.00mm)
Gain:
-0.6dBi, 1.5dBi, 2dBi, 1dBi, 1dBi, 2.6dBi, 1dBi, 3dBi, 2.6dBi, 3.9dBi, 4.1dBi, 2.3dBi, 2.6dBi, 4dBi, 4.8dBi, 4.5dBi, 4.7dBi, 1.9dBi, 3.4dBi, 3.6dBi, 5dBi
Termination:
SMA Male (3)
VSWR:
2
Return Loss:
-
Introduction
657.5MHz, 750MHz, 767.5MHz, 780MHz, 788.5MHz, 859MHz, 920MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.205GHz, 2.45GHz, 2.495GHz, 3.8GHz, 4.6GHz, 5.4GHz, 5.55GHz 802.11ax, GNSS, Wi-Fi Module RF Antenna 600MHz ~ 698MHz, 617MHz ~ 802MHz, 617MHz ~ 802MHz, 698MHz ~ 894MHz, 733MHz ~ 960MHz, 824MHz ~ 960MHz, 880MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 3.4GHz ~ 5.9GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz -0.6dBi, 1.5dBi, 2dBi, 1dBi, 1dBi, 2.6dBi, 1dBi, 3dBi, 2.6dBi, 3.9dBi, 4.1dBi, 2.3dBi, 2.6dBi, 4dBi, 4.8dBi, 4.5dBi, 4.7dBi, 1.9dBi, 3.4dBi, 3.6dBi, 5dBi SMA Male (3) Through Hole
