AN_MASTER_001-4
manufacturer:
Suzhou Maswell Communication Technology Co. Ltd
Description:

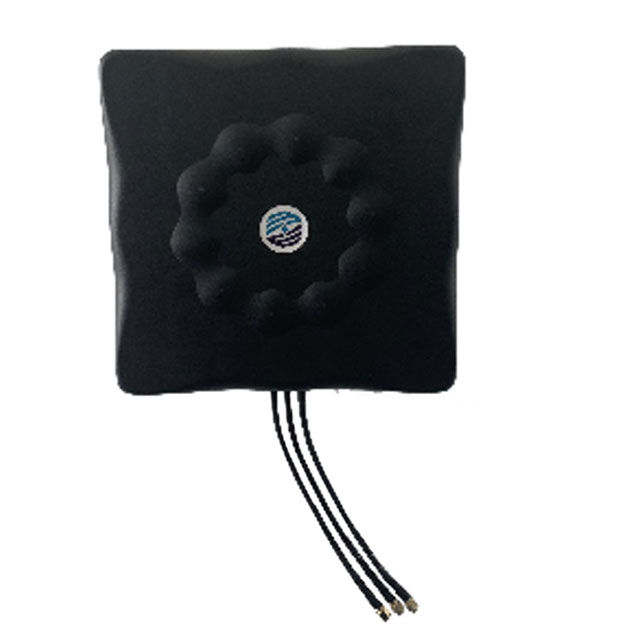

MASWELL 5G/4G/LTE+GNSS PANEL MIM
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.572GHz ~ 1.578GHz, 600MHz ~ 6GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Adhesive, Magnetic, Screw
Package:
Box
Series:
-
Antenna Type:
Panel
Mfr:
Suzhou Maswell Communication Technology Co. Ltd
Frequency Group:
Wide Band
Applications:
4G, 5G, GPS, LTE
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
1.575GHz, 3.3GHz
Height (Max):
1.772" (45.00mm)
Gain:
6dBi, 6dBi
Termination:
SMA
VSWR:
2
Return Loss:
-
Introduction
1.575GHz, 3.3GHz 4G, 5G, GPS, LTE Panel RF Antenna 1.572GHz ~ 1.578GHz, 600MHz ~ 6GHz 6dBi, 6dBi SMA Adhesive, Magnetic, Screw
