WRL-18087
manufacturer:
SparkFun Electronics
Description:

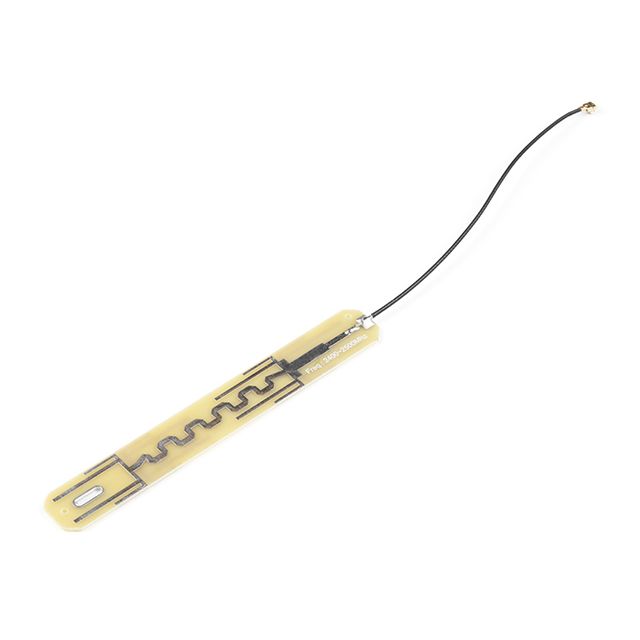

DUAL BAND ANTENNA - U.FL (2.4GHZ
Category:
RF and Wireless
Specifications
Features:
Cable - 100mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
2.4GHz ~ 2.5GHz, 5.15GHz, 5.85GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Adhesive
Package:
Bulk
Series:
-
Antenna Type:
PCB Trace
Mfr:
SparkFun Electronics
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Applications:
Bluetooth, Wi-Fi, Zigbee™
RF Family/Standard:
802.15.4, Bluetooth, WiFi
Power - Max:
30 W
Frequency (Center/Band):
2.45GHz, 5.5GHz
Height (Max):
0.039" (1.00mm)
Gain:
8dBi
Termination:
MMCX, U.FL (UMCC), IPEX MHF4
VSWR:
1.8
Return Loss:
-
Introduction
2.45GHz, 5.5GHz Bluetooth, Wi-Fi, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz, 5.85GHz 8dBi MMCX, U.FL (UMCC), IPEX MHF4 Adhesive
