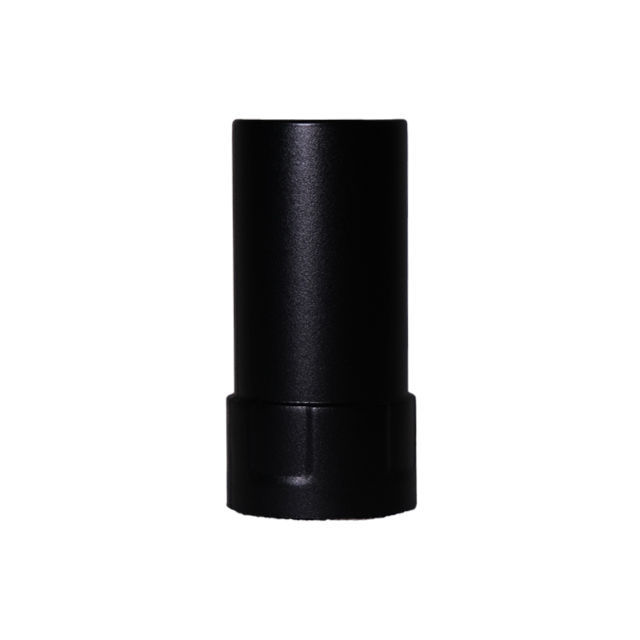

AECC0502GBS-S
manufacturer:
Abracon LLC
Description:
ANTENNA ULTRA LOW PROFILE GNSS
Category:
RF and Wireless
Specifications
Features:
LNA
Category:
RF And Wireless
RF Antennas
Frequency Range:
-
Product Status:
Active
Ingress Protection:
IP67
Number Of Bands:
7
Mounting Type:
Connector Mount
Package:
Bulk
Series:
AECC
Antenna Type:
Helical
Mfr:
Abracon LLC
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.207GHz, 1.227GHz, 1.246GHz, 1.268GHz, 1.561GHz, 1.575GHz, 1.602GHz
Height (Max):
2.189" (55.60mm)
Gain:
2dBi
Termination:
SMA Male
VSWR:
2
Return Loss:
-
Introduction
1.207GHz, 1.227GHz, 1.246GHz, 1.268GHz, 1.561GHz, 1.575GHz, 1.602GHz Beidou, Galileo, GLONASS, GNSS, GPS Helical RF Antenna 2dBi SMA Male Connector Mount
