MT-4B-AC-BL03
manufacturer:
Unictron Technologies Corporation
Description:

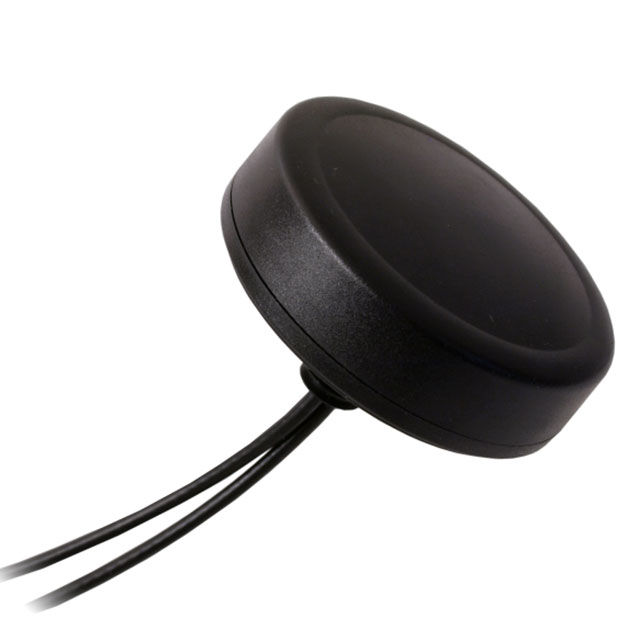

2-IN-1 COMBO EXTERNAL ANTENNA
Category:
RF and Wireless
Specifications
Features:
Cable - 5m
Category:
RF And Wireless
RF Antennas
Frequency Range:
698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
9
Mounting Type:
Screw Mount
Package:
Bulk
Series:
MT-4B
Antenna Type:
Module
Mfr:
Unictron Technologies Corporation
Frequency Group:
Wide Band
Applications:
DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz
Height (Max):
0.787" (20.00mm)
Gain:
0.15dBi, -2.17dBi, 1.21dBi, 1.21dBi, 1.44dBi, 2.52dBi, 2.71dBi, 2.71dBi, 7.93dBi
Termination:
SMA Male
VSWR:
2
Return Loss:
-10dB
Base Product Number:
MT-4B
Introduction
761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS Module RF Antenna 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz 0.15dBi, -2.17dBi, 1.21dBi, 1.21dBi, 1.44dBi, 2.52dBi, 2.71dBi, 2.71dBi, 7.93dBi SMA Male Screw Mount
