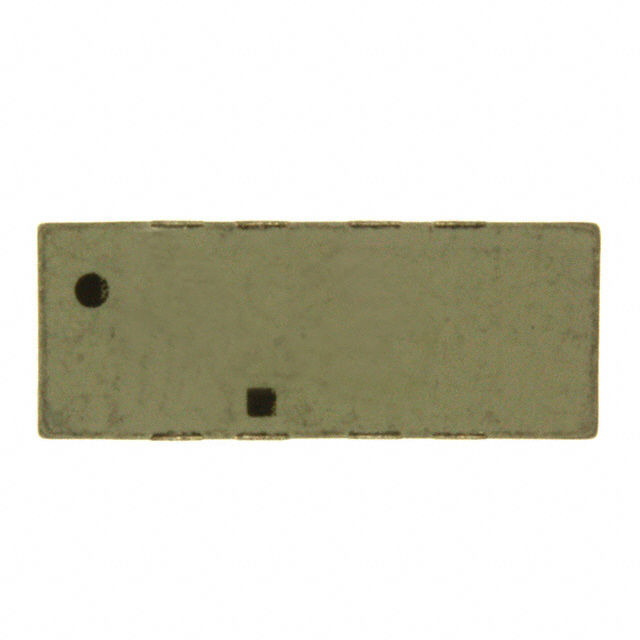

AH104F2650S1-T
manufacturer:
Taiyo Yuden
Description:
RF ANT 2.6GHZ CHIP SOLDER SMD
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
2.49GHz ~ 2.69GHz
Product Status:
Not For New Designs
Ingress Protection:
-
Number Of Bands:
1
Mounting Type:
Surface Mount
Package:
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Series:
-
Antenna Type:
Chip
Mfr:
Taiyo Yuden
Frequency Group:
UHF (2GHz ~ 3GHz)
Applications:
WiMax™
RF Family/Standard:
WiFi
Frequency (Center/Band):
2.6GHz
Height (Max):
0.039" (1.00mm)
Gain:
1.1dBi
Termination:
Solder
VSWR:
3
Return Loss:
-
Introduction
2.6GHz WiMax™ Chip RF Antenna 2.49GHz ~ 2.69GHz 1.1dBi Solder Surface Mount
