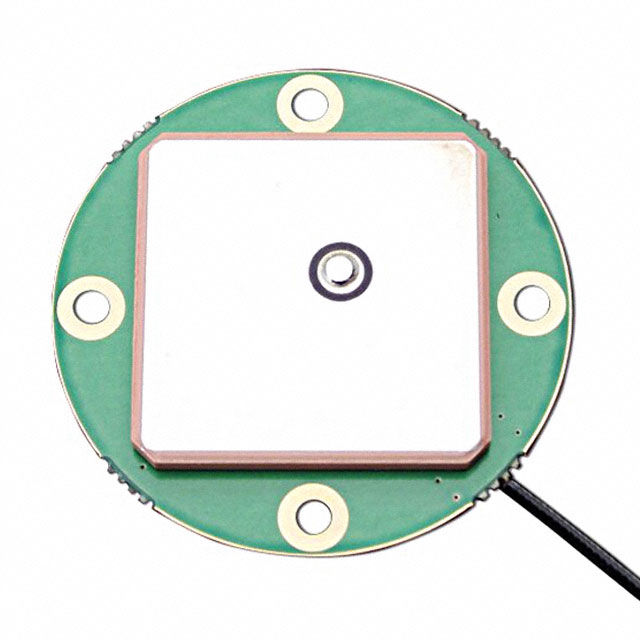

33-1320-05-0150
manufacturer:
Tallysman Wireless Inc.
Description:
RF ANT 1.575/1.602GHZ CER 15CM
Category:
RF and Wireless
Specifications
Features:
Cable - 150mm, LNA, Filter
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.575GHz ~ 1.606GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Adhesive, Chassis Mount
Package:
Bulk
Series:
-
Antenna Type:
Ceramic Patch
Mfr:
Tallysman Wireless Inc.
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
GLONASS, GPS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.575GHz, 1.602GHz
Height (Max):
0.333" (8.45mm)
Gain:
28dB
Termination:
MCX Male
VSWR:
1.5
Return Loss:
-10dB
Introduction
1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz ~ 1.606GHz 28dB MCX Male Adhesive, Chassis Mount
