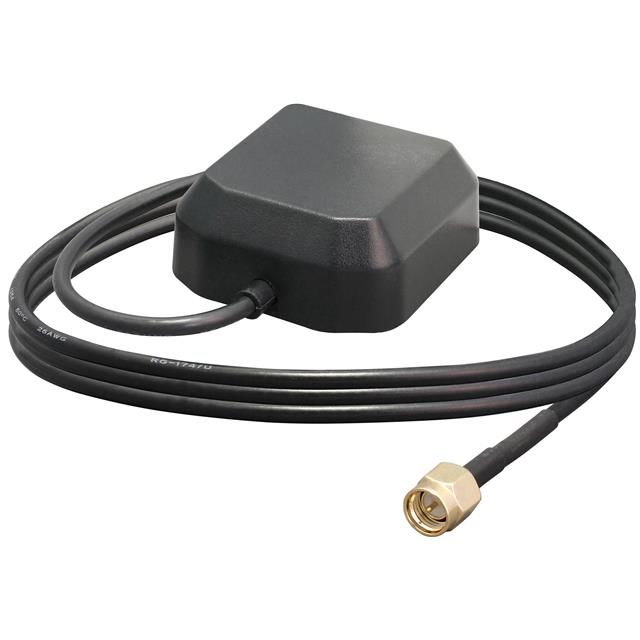

ANT-GNRM-L12A-5
manufacturer:
Linx Technologies Inc.
Description:
ANTENNA, REMOTE ACTIVE CERAMIC P
Category:
RF and Wireless
Specifications
Features:
Cable - 5m, LNA
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.202GHz ~ 1.207GHz, 1.246GHz ~ 1.248GHz, 1.601GHz ~ 1.602GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
6
Mounting Type:
Magnetic
Package:
Bag
Series:
GNRM
Antenna Type:
Module
Mfr:
Linx Technologies Inc.
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.2045GHz, 1.228GHz, 1.247GHz, 1.561GHz, 1.575GHz, 1.6015GHz
Height (Max):
0.642" (16.30mm)
Gain:
25dBi, 27.4dBi, 23.4dBi, 28.4dBi, 32.4dBi, 32.4dBi
Termination:
SMA Male
VSWR:
1.1, 1.2, 1.5, 1.6, 1.7
Return Loss:
-11.6dB, -13.3dB, -14.4dB, -19.2dB, -25dB
Introduction
1.2045GHz, 1.228GHz, 1.247GHz, 1.561GHz, 1.575GHz, 1.6015GHz Beidou, Galileo, GLONASS, GNSS, GPS Module RF Antenna 1.202GHz ~ 1.207GHz, 1.246GHz ~ 1.248GHz, 1.601GHz ~ 1.602GHz 25dBi, 27.4dBi, 23.4dBi, 28.4dBi, 32.4dBi, 32.4dBi SMA Male Magnetic
