SZK-C-1L08
manufacturer:
Synzen
Description:

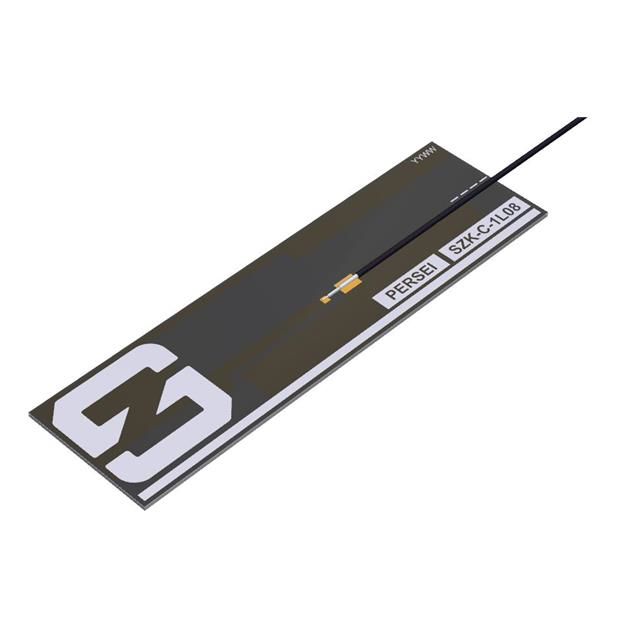

4G LTE FLAT PATCH IPEX (FR4)
Category:
RF and Wireless
Specifications
Features:
Cable - 150mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
4
Mounting Type:
Surface Mount
Package:
Bag
Series:
-
Antenna Type:
PCB Trace
Mfr:
Synzen
Frequency Group:
Wide Band
Applications:
2G, 3G, 4G, LTE
RF Family/Standard:
Cellular
Power - Max:
5 W
Frequency (Center/Band):
829MHz, 1.955GHz, 2.35GHz, 2.595GHz
Height (Max):
0.024" (0.60mm)
Gain:
2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi
Termination:
U.FL (UMCC), IPEX MHF1
VSWR:
1.5, 1.7, 1.75, 2.9
Return Loss:
-6dB, -11.3dB, -11.4dB, -13.8dB
Introduction
829MHz, 1.955GHz, 2.35GHz, 2.595GHz 2G, 3G, 4G, LTE PCB Trace RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz 2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi U.FL (UMCC), IPEX MHF1 Surface Mount
