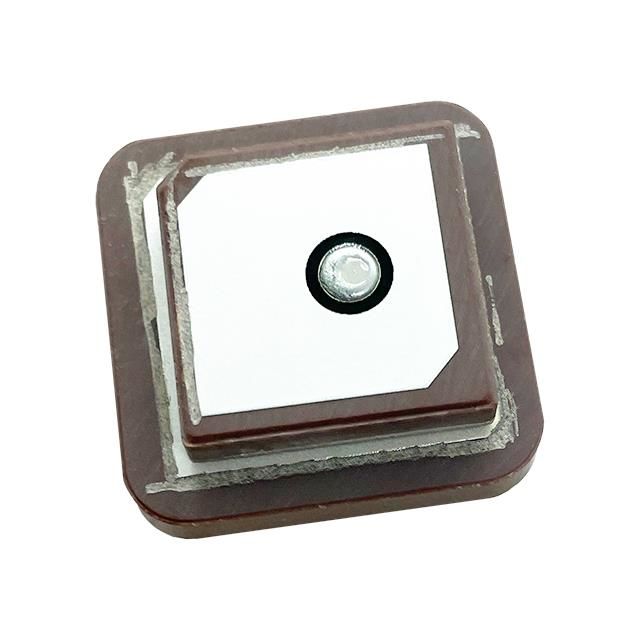

ATPGGBL5R2580A
manufacturer:
YIC
Description:
RF ANT GPS L1+L5/GLONASS/BEIDOU
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
5
Mounting Type:
Adhesive
Package:
Tray
Series:
ATPGGBL5
Antenna Type:
Ceramic Patch
Mfr:
YIC
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
Beidou, GLONASS, GPS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz
Height (Max):
0.315" (8.00mm)
Gain:
0.5dBi, 2.4dBi, 0.6dBi, 0.6dBi, 3.4dBi
Termination:
Pin
VSWR:
1.8
Return Loss:
-
Introduction
1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz Beidou, GLONASS, GPS Ceramic Patch RF Antenna 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz 0.5dBi, 2.4dBi, 0.6dBi, 0.6dBi, 3.4dBi Pin Adhesive
