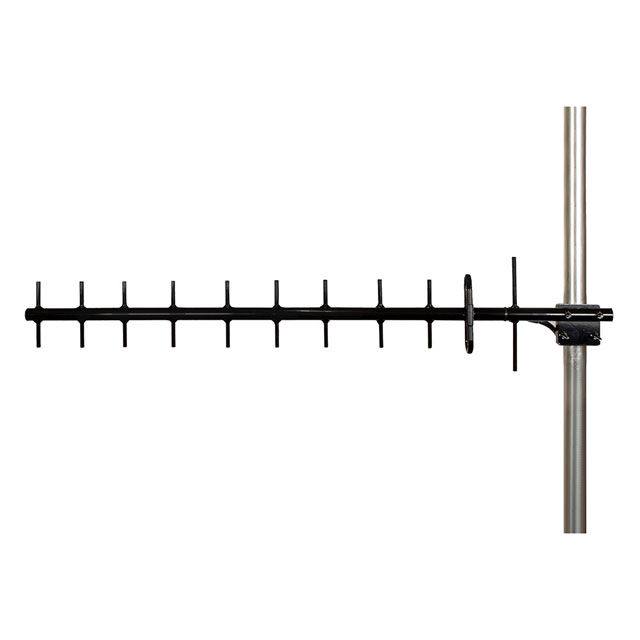

PE51YA1016
manufacturer:
Pasternack
Description:
13DBI YAGI 880-960MHZ N
Category:
RF and Wireless
Specifications
Features:
Cable - 914.4mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
880MHz ~ 928MHz, 928MHz ~ 960MHz
Product Status:
Active
Ingress Protection:
IP55
Number Of Bands:
2
Mounting Type:
Bracket Mount
Package:
Bag
Series:
-
Antenna Type:
Yagi
Mfr:
Pasternack
Frequency Group:
UHF (300MHz ~ 1GHz)
Applications:
GSM, ISM, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M, WLAN
RF Family/Standard:
Cellular, General ISM, WiFi
Power - Max:
150 W
Frequency (Center/Band):
904MHz, 944MHz
Height (Max):
43.000" (1092.20mm)
Gain:
12.5dBi, 13dBi
Termination:
N Type Female
VSWR:
1.5
Return Loss:
-
Introduction
904MHz, 944MHz GSM, ISM, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M, WLAN Yagi RF Antenna 880MHz ~ 928MHz, 928MHz ~ 960MHz 12.5dBi, 13dBi N Type Female Bracket Mount
