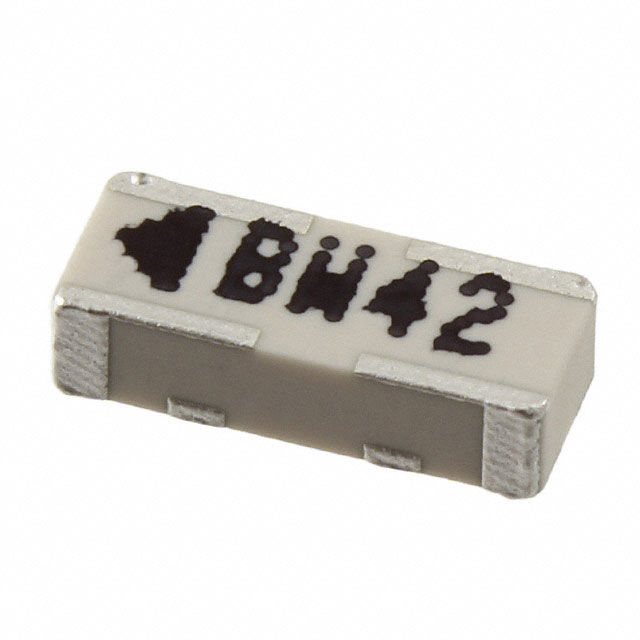

ACA-103-T
manufacturer:
Abracon LLC
Description:
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz
Product Status:
Obsolete
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Surface Mount
Package:
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Series:
-
Antenna Type:
Chip
Mfr:
Abracon LLC
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Applications:
Bluetooth, WLAN
RF Family/Standard:
Bluetooth, WiFi
Frequency (Center/Band):
2.4GHz, 5.5GHz
Height (Max):
0.047" (1.20mm)
Gain:
-1.37dBi
Termination:
Solder
VSWR:
3
Return Loss:
-
Introduction
2.4GHz, 5.5GHz Bluetooth, WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz -1.37dBi Solder Surface Mount
