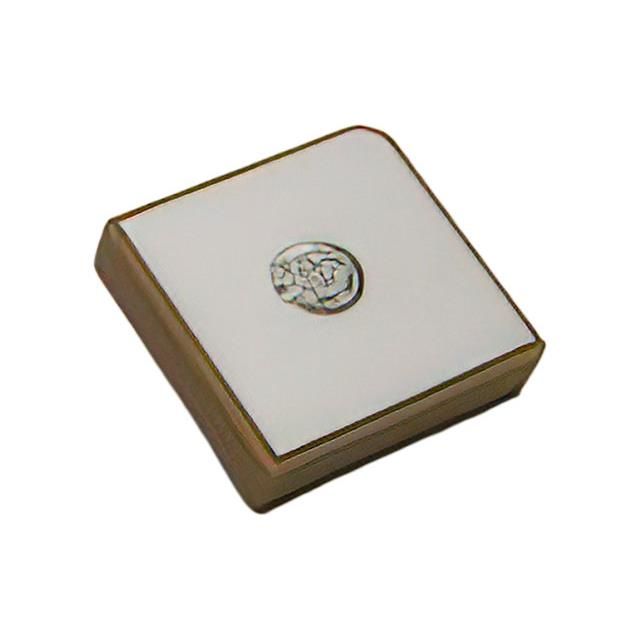

ANT1212B00DT1575S
manufacturer:
Pulse Electronics
Description:
ANTENNA PATCH GPS CP PIN DIAG.
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
1.577GHz ~ 1.583GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
1
Mounting Type:
Adhesive
Package:
Tray
Series:
1212
Antenna Type:
Ceramic Patch
Mfr:
Pulse Electronics
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
GPS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.58GHz
Height (Max):
0.157" (4.00mm)
Gain:
-1.5dBic
Termination:
Pin
VSWR:
2
Return Loss:
-
Base Product Number:
ANT1212
Introduction
1.58GHz GPS Ceramic Patch RF Antenna 1.577GHz ~ 1.583GHz -1.5dBic Pin Adhesive
