Home > products > Inductors, Coils, Chokes > PM3604-150-RC

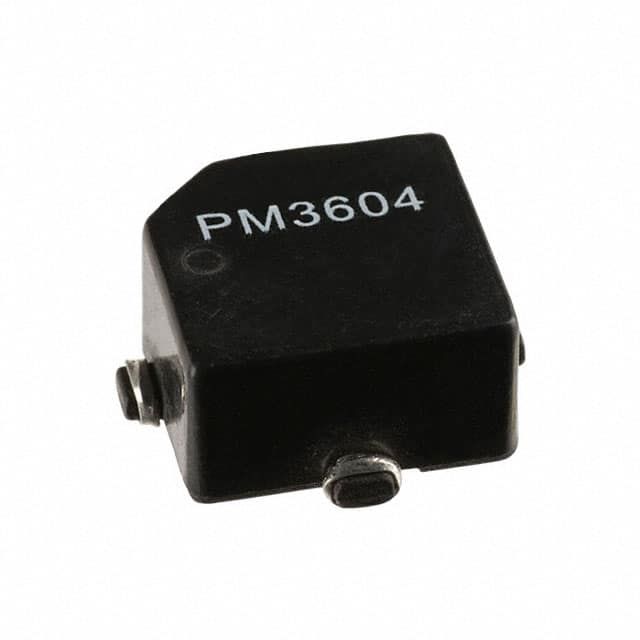

PM3604-150-RC

manufacturer:
J.W. Miller / Bourns
Description:
PM3604-150-RC datasheet pdf and Arrays, Signal Transformers product details from J.W. Miller / Bourns stock available at Tanssion
Category:
Inductors, Coils, Chokes
Specifications
Part Number:
PM3604-150-RC
Manufacturer:
J.W. Miller / Bourns
Description:
In Stock. Alternative Models Available.
Lifecycle:
New From This Manufacturer
Datasheet:
PM3604-150-RC Datasheet PDF
Delivery:
DHL、UPS、FedEx、Registered Mail
Payment:
T/T Paypal Visa MoneyGram Western Union
More Information:
PM3604-150-RC More Information
ECAD:
Request Free CAD Models
Pricing(USD):
$1.92
Remark:
Manufacturer: J.W. Miller / Bourns. Tanssion Is One Of The Distributors. Wide Range Of Applications.
Depth:
13.97 Mm
Width:
11.4808 Mm
Length:
13.97 Mm
Shielding:
Unshielded
DC Current:
780 MA
Resistance:
320 MΩ
Case/Package:
Nonstandard
Max DC Current:
780 MA
Number Of Coils:
2
RMS Current (Irms):
780 MA
Inductance - Series:
600 µH
Inductance - Parallel:
150 µH
Min Operating Temperature:
-55 °C
Products Category:
Inductors, Coils, Chokes - Arrays, Signal Transformers
Datasheet:
PM3604-150-RC.pdf
Qty:
5415 In Stock
Applications:
Data Storage Aerospace & Defense Advanced Driver Assistance Systems (ADAS)
Mount:
Surface Mount
Height:
6.73 Mm
Packaging:
Tape & Reel (TR)
Tolerance:
20 %
Inductance:
150 µH
Termination:
SMD/SMT
Core Material:
Ferrite
Number Of Pins:
4
Military Standard:
Not
DC Resistance (DCR):
320 MΩ
Inductance Tolerance:
20 %
Max Operating Temperature:
125 °C
DC Resistance (DCR) - Series:
1.28 Ω
Introduction
PM3604-150-RC Overview\\\\nPM3604-150-RC is a model belonging to the Arrays, Signal Transformers subcategory under Inductors, Coils, Chokes. For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have PM3604-150-RC high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensively. PM3604-150-RC is widely used in Data storage,Aerospace & defense,Advanced driver assistance systems (ADAS). It is manufactured by J.W. Miller / Bourns and distributed by Fans, Tanssion and other distributors. PM3604-150-RC can be purchased in many ways. You can place an order directly on this website, or you can call or email us. At present, We have sufficient supplies. In addition our own stock, we can also adjust the inventory to the peer distributors to meet your needs. If the supply of PM3604-150-RC is insufficient, we also have other models under the Inductors, Coils, Chokes Arrays, Signal Transformers category to replace it. Fans provides a 1-year warranty to customers who have purchased this part to ensure that our customers have a wonderful purchasing experience and are willing to establish a long-term relationship with Fans. So you can order PM3604-150-RC from Fans with confidence. About delivery, we can deliver goods to our customers through a variety of logistics, such as DHL, FedEx, UPS, TNT and EMS or any other freight forwarder. If you want to know more about the freight, feel free to contact us for more details.
pm3600-series.pdf
