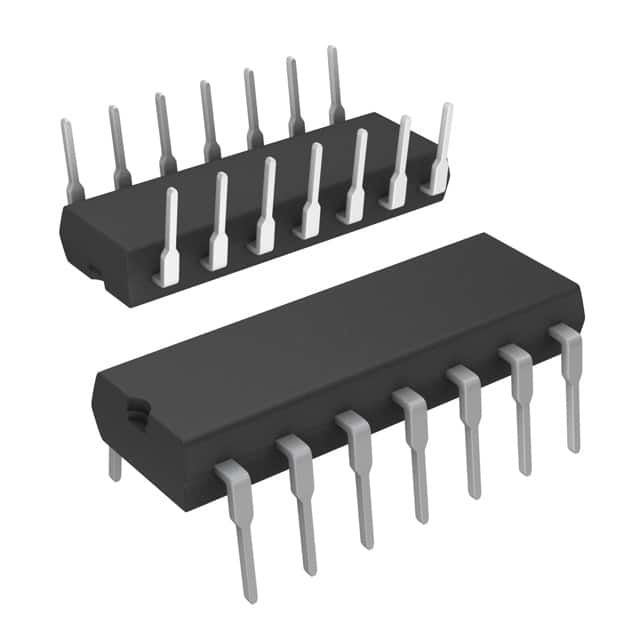

MC14106BCPG
Specifications
Part Number:
MC14106BCPG
Manufacturer:
Sanyo Semiconductor/ON Semiconductor
Description:
In Stock. Alternative Models Available.
Lifecycle:
New From This Manufacturer
Datasheet:
MC14106BCPG Datasheet PDF
Delivery:
DHL、UPS、FedEx、Registered Mail
Payment:
T/T Paypal Visa MoneyGram Western Union
More Information:
MC14106BCPG More Information
ECAD:
Request Free CAD Models
Pricing(USD):
$0.00
Remark:
Manufacturer: Sanyo Semiconductor/ON Semiconductor.
Tanssion Is One Of The Distributors.
Wide Range Of Applications.
Mount:
Through Hole
Height:
3.68 Mm
Weight:
4.535924 G
Case/Package:
DIP
Number Of Pins:
14
Number Of Gates:
6
Propagation Delay:
250 Ns
Max Output Current:
8.8 MA
Min Supply Voltage:
3 V
Number Of Elements:
6
Schmitt Trigger Input:
Yes
High Level Output Current:
-4.2 MA
Min Operating Temperature:
-55 °C
Products Category:
Integrated Circuits (ICs) - Logic - Gates And Inverters
Datasheet:
MC14106BCPG.pdf
Qty:
596 In Stock
Applications:
Building Automation
Electronic Point Of Sale (EPOS)
Portable Electronics
Width:
6.6 Mm
Length:
19.56 Mm
Output Type:
TTL
Logic Function:
Buffer, Inverter, Schmitt Trigger
Output Current:
8.8 MA
Number Of Inputs:
1
Quiescent Current:
1 µA
Max Supply Voltage:
18 V
Number Of Circuits:
6
Turn-On Delay Time:
80 Ns
Low Level Output Current:
4.2 MA
Max Operating Temperature:
125 °C
Introduction
MC14106BCPG Overview\\nMC14106BCPG is a model belonging to the Logic - Gates and Inverters subcategory under Integrated Circuits (ICs). For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have MC14106BCPG high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensively. MC14106BCPG is widely used in Building automation,Electronic point of sale (EPOS),Portable electronics. It is manufactured by Sanyo Semiconductor/ON Semiconductor and distributed by Fans, Tanssion and other distributors. MC14106BCPG can be purchased in many ways. You can place an order directly on this website, or you can call or email us. At present, We have sufficient supplies. In addition our own stock, we can also adjust the inventory to the peer distributors to meet your needs. If the supply of MC14106BCPG is insufficient, we also have other models under the Integrated Circuits (ICs) Logic - Gates and Inverters category to replace it. Fans provides a 1-year warranty to customers who have purchased this part to ensure that our customers have a wonderful purchasing experience and are willing to establish a long-term relationship with Fans. So you can order MC14106BCPG from Fans with confidence. About delivery, we can deliver goods to our customers through a variety of logistics, such as DHL, FedEx, UPS, TNT and EMS or any other freight forwarder. If you want to know more about the freight, feel free to contact us for more details.
