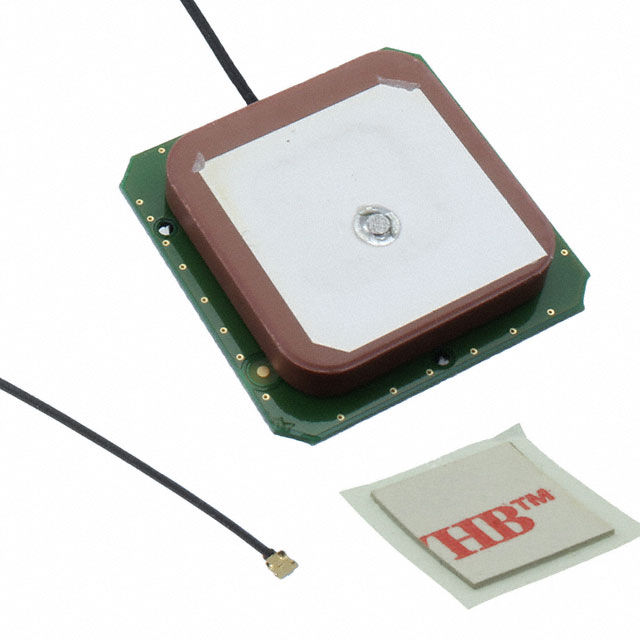

GPSGB2515
manufacturer:
Pulse Electronics
Description:
RF ANT 1.561/1.575GHZ CER PATCH
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
-
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
3
Mounting Type:
Surface Mount
Package:
Bulk
Series:
-
Antenna Type:
Ceramic Patch
Mfr:
Pulse Electronics
Frequency Group:
UHF (1GHz ~ 2GHz)
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.561GHz, 1.575GHz, 1.602GHz
Height (Max):
0.321" (8.15mm)
Gain:
1dBic
Termination:
U.FL (UMCC), IPEX MHF1
VSWR:
2
Return Loss:
-
Introduction
1.561GHz, 1.575GHz, 1.602GHz Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1dBic U.FL (UMCC), IPEX MHF1 Surface Mount
