ANTX100P002B24553
manufacturer:
Pulse Electronics
Description:

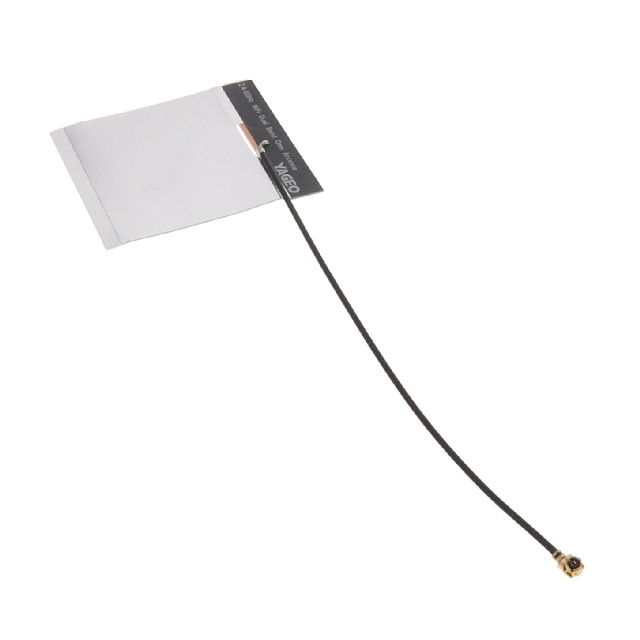

RF ANT 2.45GHZ/5.3685GHZ PCB
Category:
RF and Wireless
Specifications
Features:
Cable - 100mm
Category:
RF And Wireless
RF Antennas
Frequency Range:
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.587GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Adhesive
Package:
Bulk
Series:
-
Antenna Type:
PCB Trace
Mfr:
Pulse Electronics
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Applications:
Bluetooth, Wi-Fi, Zigbee™
RF Family/Standard:
802.15.4, Bluetooth, WiFi
Power - Max:
1 W
Frequency (Center/Band):
2.45GHz, 5.3685GHz
Height (Max):
0.022" (0.55mm)
Gain:
0.7dBi, 1.9dBi
Termination:
U.FL (UMCC), IPEX MHF1
VSWR:
2.5
Return Loss:
-
Introduction
2.45GHz, 5.3685GHz Bluetooth, Wi-Fi, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.587GHz 0.7dBi, 1.9dBi U.FL (UMCC), IPEX MHF1 Adhesive
