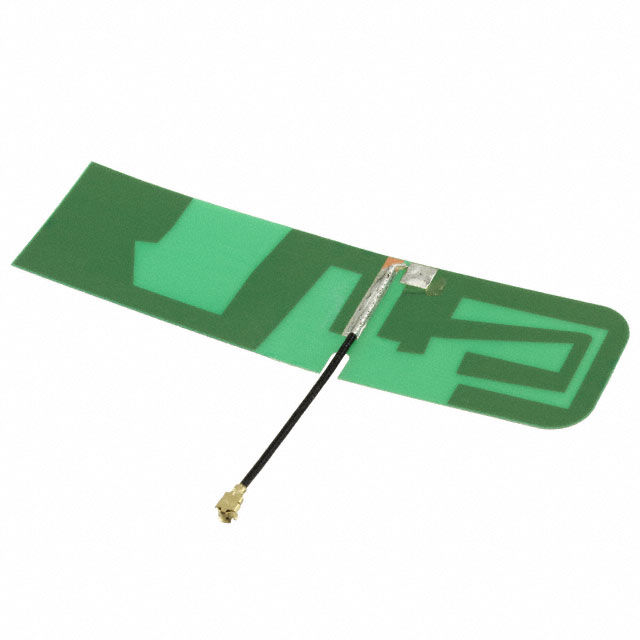

W3501
manufacturer:
Pulse Electronics
Description:
RF ANT 892MHZ/1.9GHZ PCB TRACE
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Product Status:
Active
Ingress Protection:
-
Number Of Bands:
2
Mounting Type:
Surface Mount
Package:
Bulk
Series:
-
Antenna Type:
PCB Trace
Mfr:
Pulse Electronics
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Applications:
GSM
RF Family/Standard:
Cellular
Frequency (Center/Band):
892MHz, 1.9GHz
Height (Max):
0.008" (0.20mm)
Gain:
1.5dBi, 3.75dBi
Termination:
U.FL (UMCC), IPEX MHF1
VSWR:
-
Return Loss:
-7dB, -8dB
Introduction
892MHz, 1.9GHz GSM PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz 1.5dBi, 3.75dBi U.FL (UMCC), IPEX MHF1 Surface Mount
