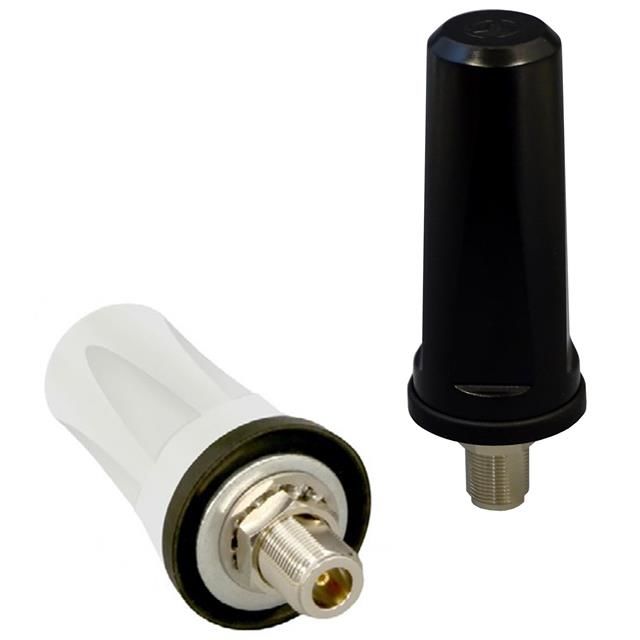

LPTNGP600/71DMN
manufacturer:
Pulse Electronics
Description:
ANT DIPOLE 4G 5G 6E N-FEMALE BLK
Category:
RF and Wireless
Specifications
Features:
-
Category:
RF And Wireless
RF Antennas
Frequency Range:
617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz
Product Status:
Active
Ingress Protection:
IP67
Number Of Bands:
6
Mounting Type:
Panel Mount
Package:
Bag
Series:
-
Antenna Type:
Dome
Mfr:
Pulse Electronics
Frequency Group:
Wide Band
Applications:
General Purpose
RF Family/Standard:
Cellular
Power - Max:
60 W
Frequency (Center/Band):
788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 5.537GHz, 6.562GHz
Height (Max):
3.850" (97.80mm)
Gain:
-1.6dBi, 2.6dBi, 3.8dBi, 2.9dBi, 2.8dBi, 3.4dBi
Termination:
N Type Female
VSWR:
2, 3.5
Return Loss:
-
Model Number:
LPTNGP600/71DMN
Introduction
788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 5.537GHz, 6.562GHz General Purpose Dome RF Antenna 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz -1.6dBi, 2.6dBi, 3.8dBi, 2.9dBi, 2.8dBi, 3.4dBi N Type Female Panel Mount
